Devantech

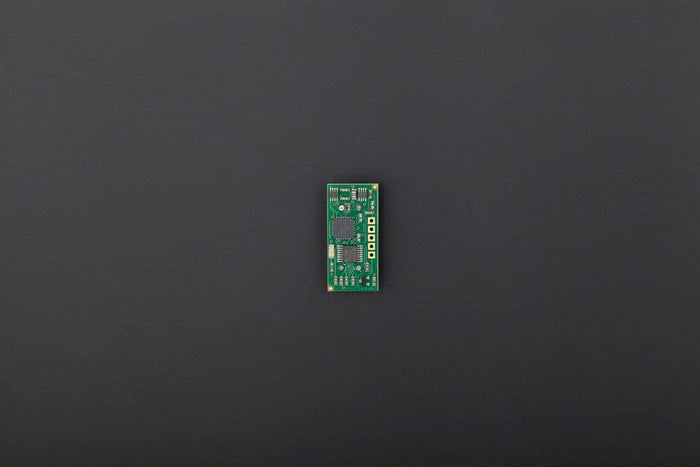

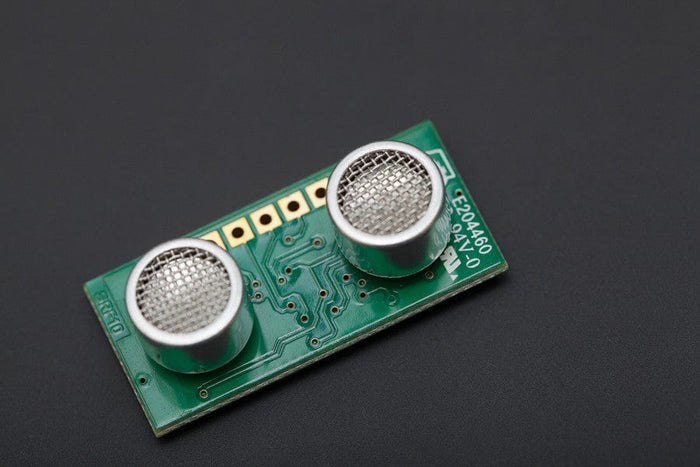

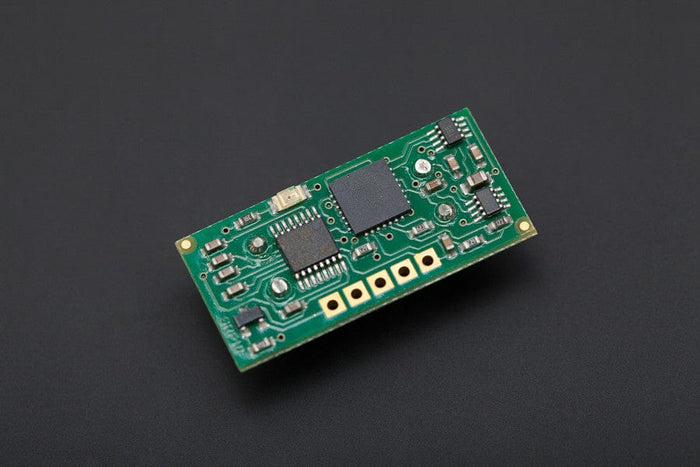

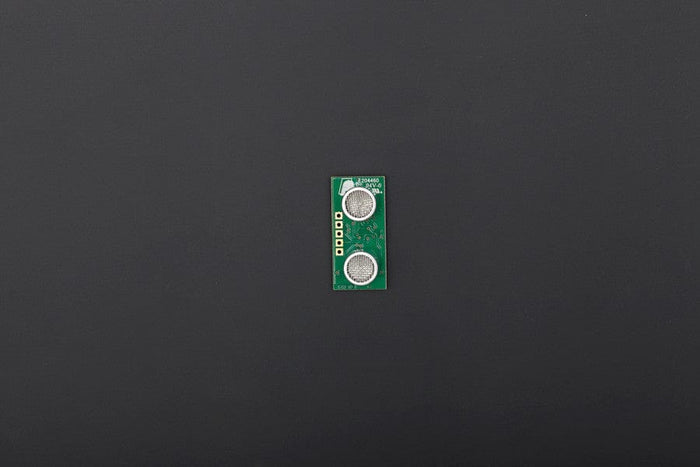

SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger [Discontinued]

SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger [Discontinued]

$30.24 USD
$43.20 USD $30.24 USD
Sale Sold out
Shipping calculated at checkout.

This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the IIC bus.


Specification

  • Voltage-5v
  • Current-15mA Typ. 3mA Standby
  • Frequency-40KHz
  • Maximum Range-6 m(236.2'')
  • Minimum Range-3 cm(1.2'')
  • Max Analogue Gain-Variable 40 to 700 in 16 steps
  • Connection-Standard IIC Bus
  • Timing-Fully timed echo, freeing host computer of task
  • Units-Range reported in uS, mm or inches
  • Size-1.25in w x 0.59in d x 0.39in h (32mm w x 15mm d x 10mm h)

Documents

  • Manual
