Spring-Loaded Terminal Breakout Board for Raspberry Pi [Discontinued]

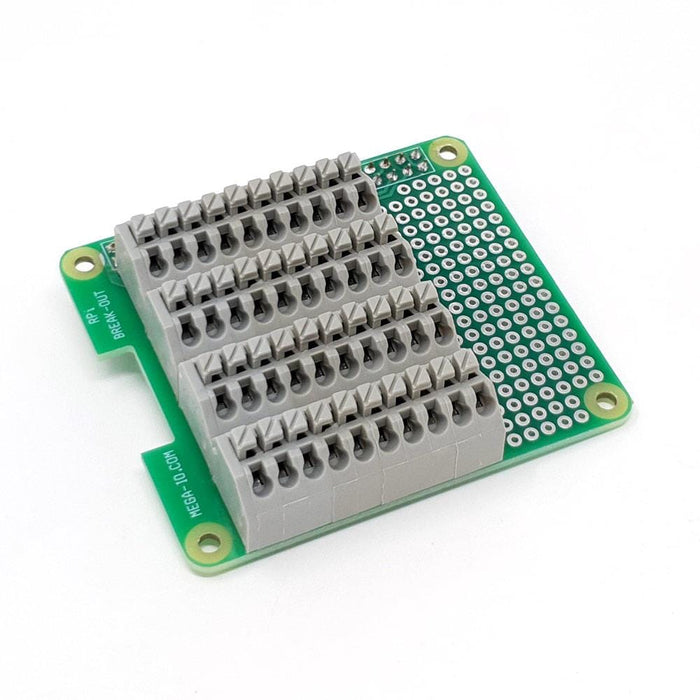

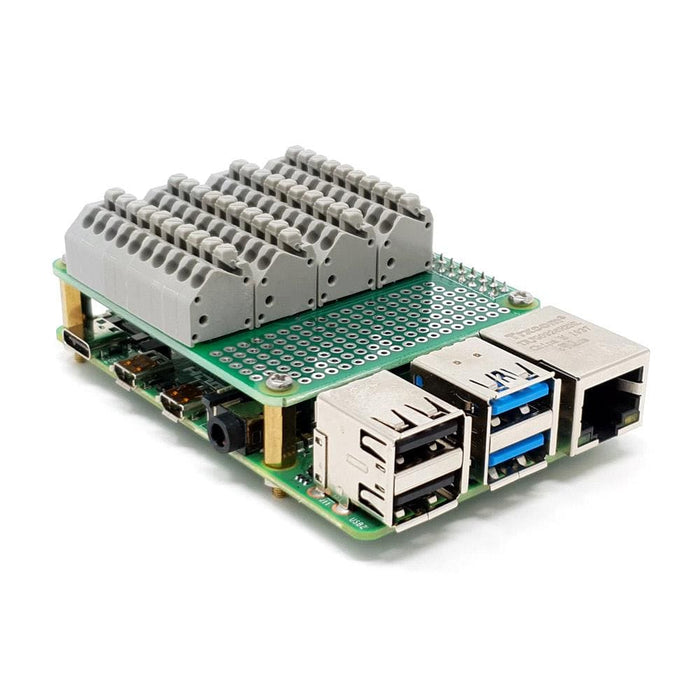

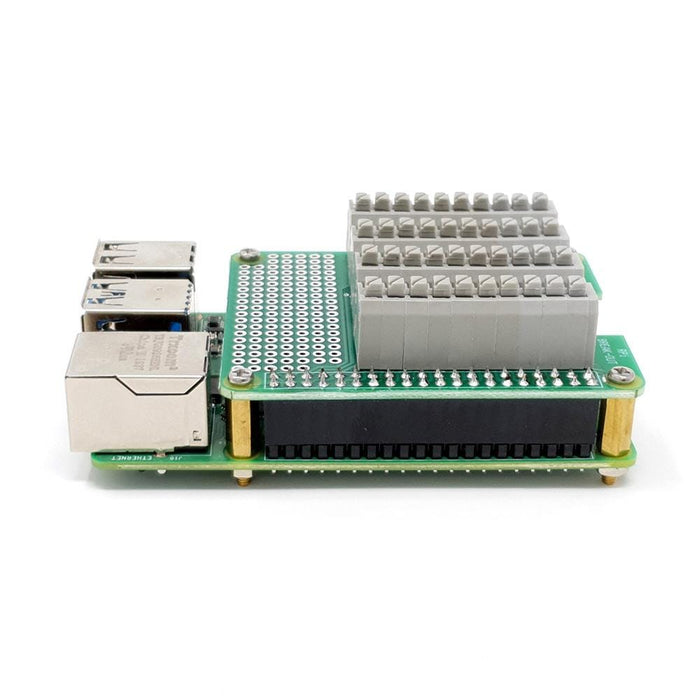

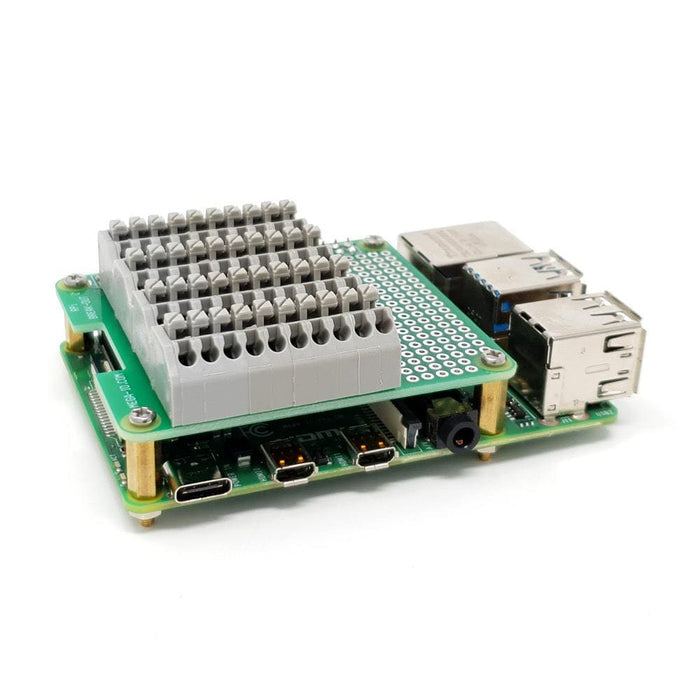

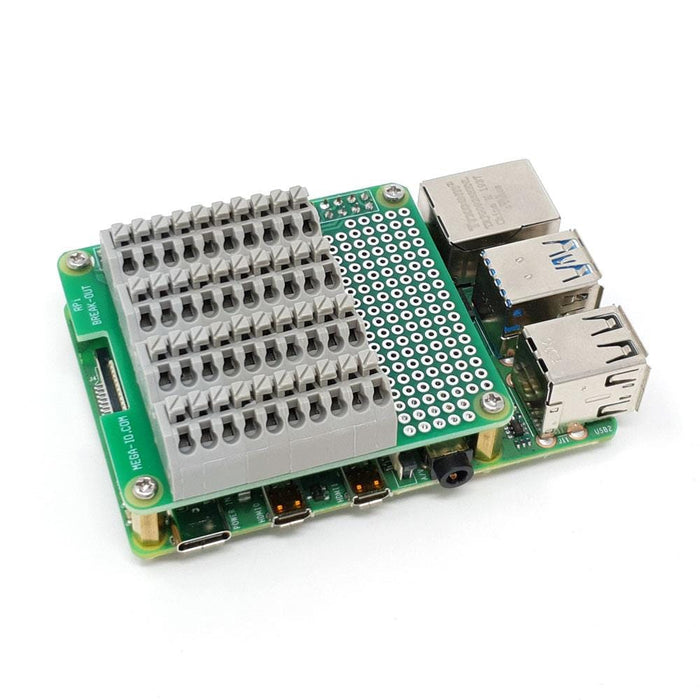

This card plugs into the Raspberry Pi 40-pin GPIO socket and brings all GPIO pins out to spring-loaded terminal blocks.

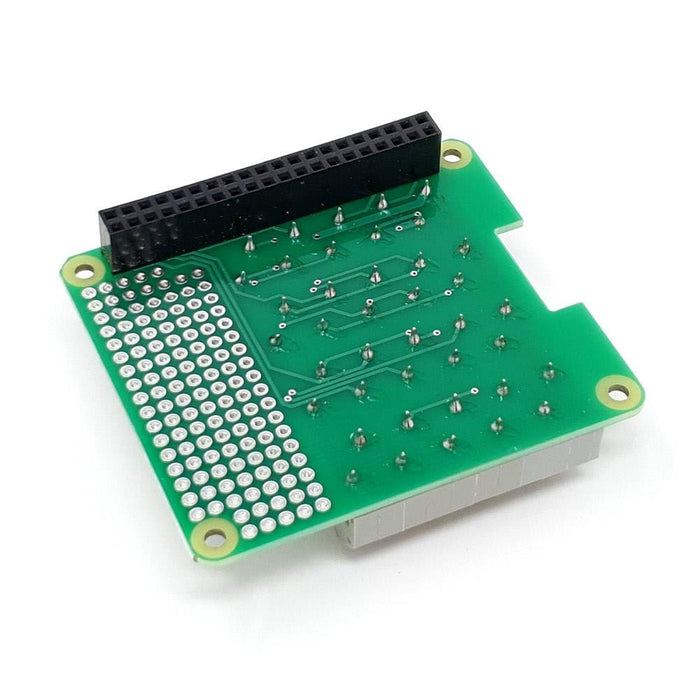

Spring-loaded terminal blocks allow for rapid, convenient and tool-free connection to GPIO pins. The prototype area can also be used to test your own hardware.

A connection map reference card is included in the package below can also be printed below.

Compatible with all 40-pin Raspberry Pis.

For any technical questions about this product please email support@sequentmicrosystems.com

Features & Specs

• 3.5mm pitch PCB spring-loaded terminal block connectors
• Stainless steel wire guard
• Phosphor bronze, tin-plated pin header
• Rated Voltage: 300V
• Rated Current: 7A
• Contact Resistance: 20 mOhms
• Insulation Resistance: 5000 MOhms/DC 1000V
• Withstanding Voltage: 2000 VAC minimum/1Min
• Wire Range: 22-18 AWG
• Strip Length: 8-9 mm

Terminal block connections

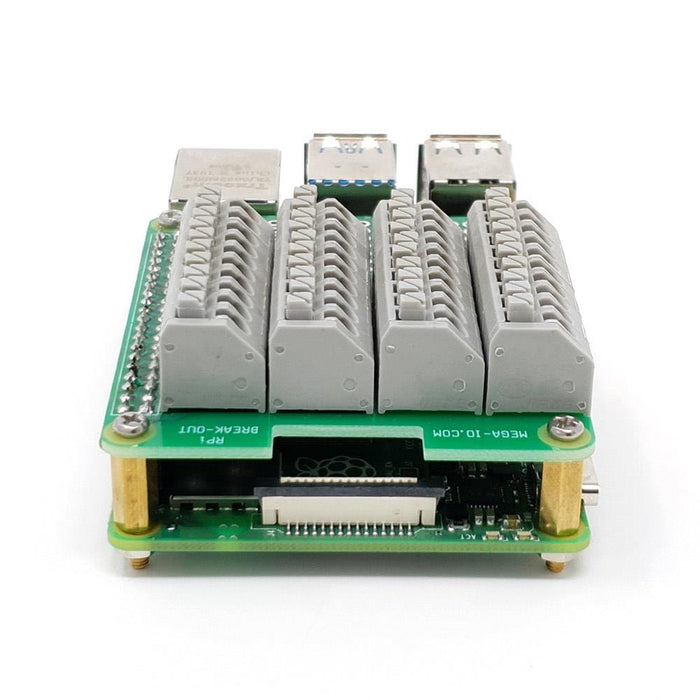

The four connectors of 10 pins each are wired as follows:
