DFRobot

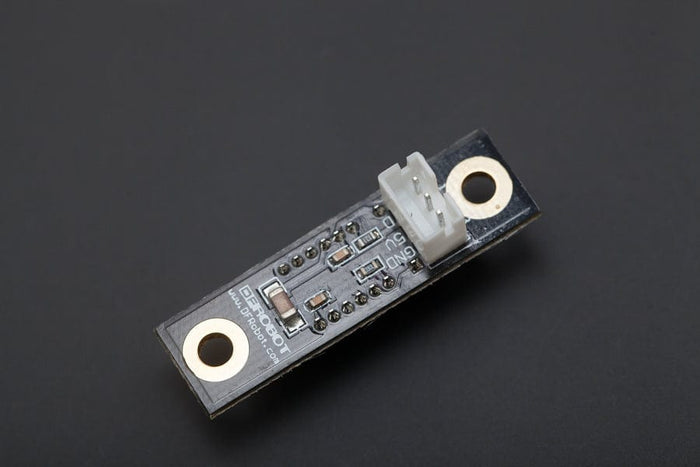

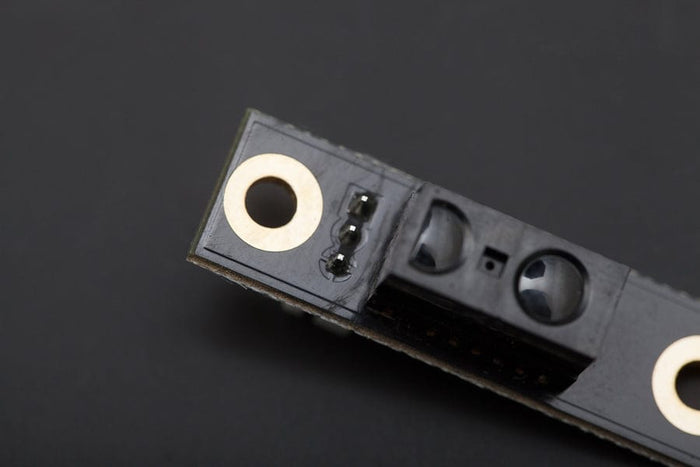

Gravity: Digital Infrared Distance Sensor (10cm) [Discontinued]

Gravity: Digital Infrared Distance Sensor (10cm) [Discontinued]

$6.02 USD
$9.40 USD $6.02 USD
Sale Sold out
Shipping calculated at checkout.
This is an edge detection sensor from DFRobot. It will help your robot detect the edge of a precipice, preventing it from falling off a table or down the stairs to it's certain demise! This IR distance sensor is connected to an arduino digital pin.

Applications

  • Edge detection sensor
  • Intelligent Mobile Robotics Platforms
  • Home Cleaning Robots

Specification

  • Supply Voltage: 2.7~6.2v
  • Current: < 10mA
  • Detecting Distance: 2~10cm (Low), <2cm or >10cm (High)
  • Interface:Digital Output
  • Signal Voltage: Vcc-0.6v(High) 0.6v(Low)
  • Size: 36.0×10.0×15.0 mm / 1.42×0.39×0.59 in
  • Weight: < 5g

Documents

  • Product Wiki
  • More Documents

Shipping List

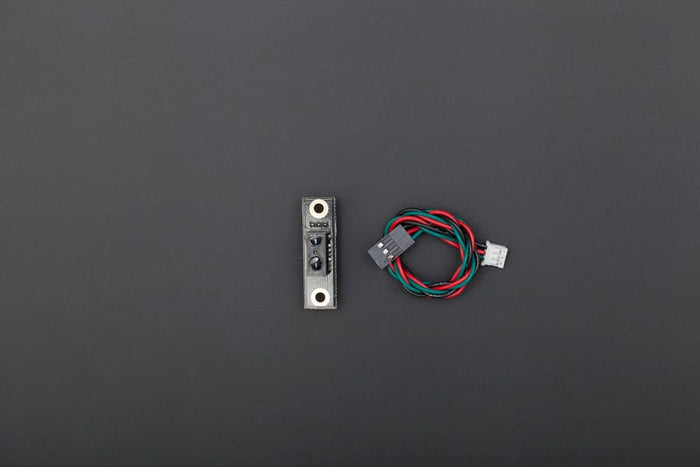

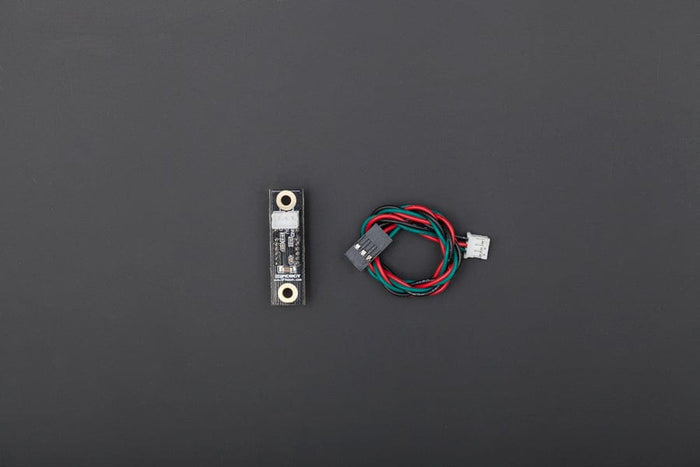

  • 10cm infrared sensor w/Breakout Board x1
  • Digital Sensor Cable for Arduino x1
