Aluminium SMT Heat Sinks 10 Pack - (0.25"x0.25" x 0.15" tall)

These Mini Heat Sinks provide an easy way to improve cooling for compact ICs and power components, with a low-profile design and pre-applied thermal tape for quick installation.

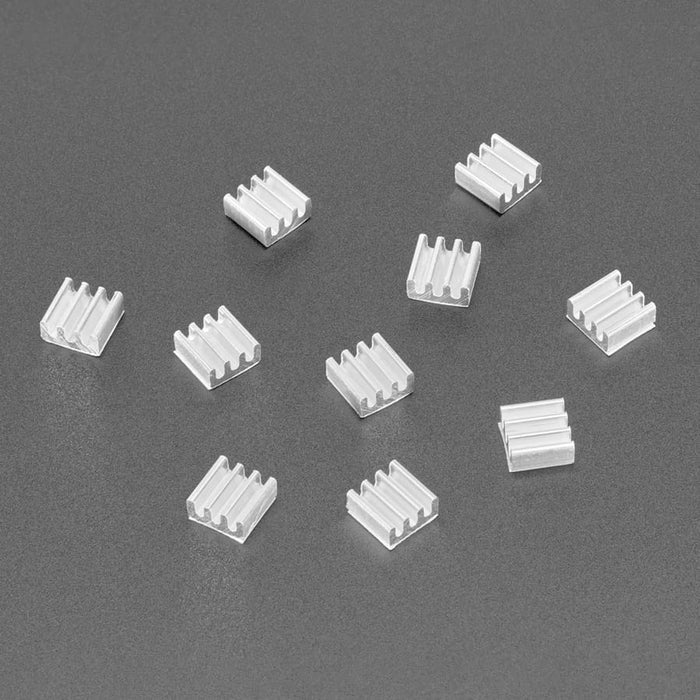

If you want to heat sink a SoC, motor driver, linear regulator, FET, or other surface-mount package part, you might struggle to find a good heat sink. These little extra-small mini heat sinks are easy to use and give you an extra thermal boost. They're also a great deal; you get a pack of 10 in each order!

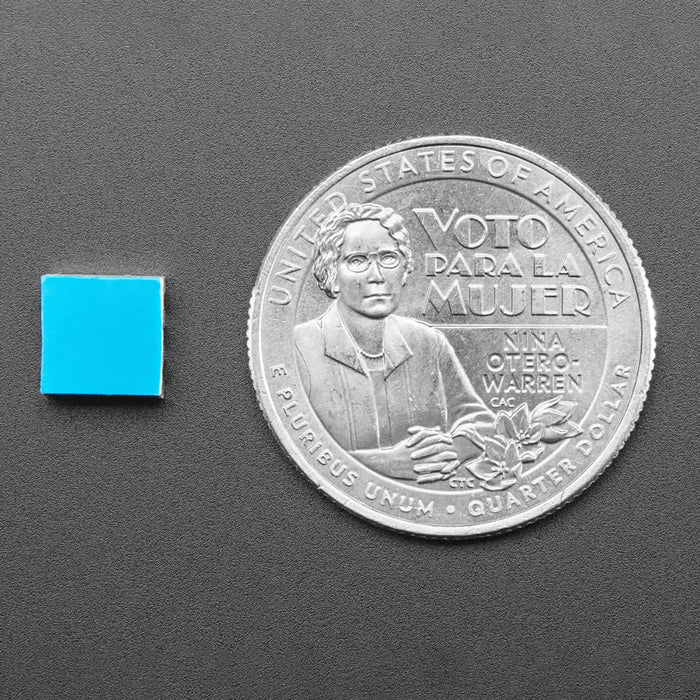

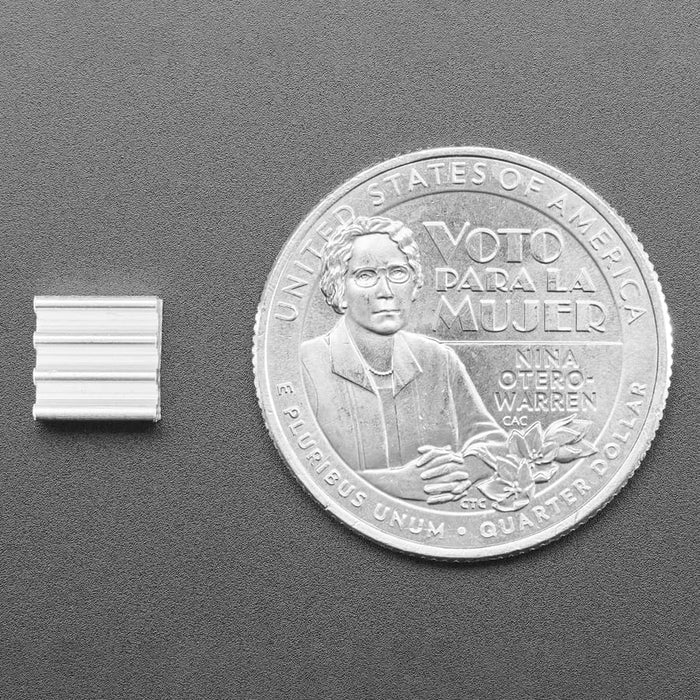

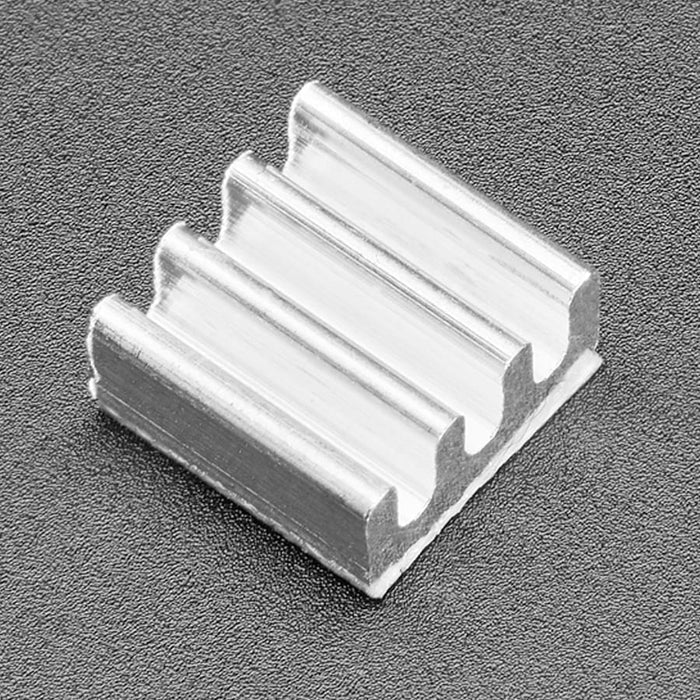

The heat sink is a 6.5mm x 6.5mm square with four little 'fins' sticking out the top. The total height is 3.3mm, so it will fit in any case or enclosure. They even come with a bit of thermal tape already on the bottom! Ideal for medium flat BGAs, TSSOPs, QFNs, etc!

We do not have a datasheet for these heat sinks, but we believe the thermal resistance is approximately 90ºC/W.

Features

• OV9281 photosensitive chip with 3μm x 3μm pixel size
• OmniPixel3-GS™ technology for enhanced imaging
• Global shutter eliminates motion distortion
• 1280x800 resolution with 1 megapixel sensor
• Excellent low-light performance for night monitoring
• Captures fast-moving objects with clarity
• Compact design with two FPC cables
• Direct compatibility with Raspberry Pi single-board computers
• Quick setup without additional purchases required

Specifications

• Product Dimensions: 7.0mm x 7.0mm x 3.3mm

Revision History

• As of May 21, 2024 - These heat sinks come with four fins instead of the previous nine. Dimensions have changed from 0.25"x0.25" x 0.15" to 0.27" x 0.27" x 0.14".

Resources

• Diagram

Package Contents

• 1x Aluminium SMT Heat Sinks 10 Pack - (0.25"x0.25" x 0.15" tall)
